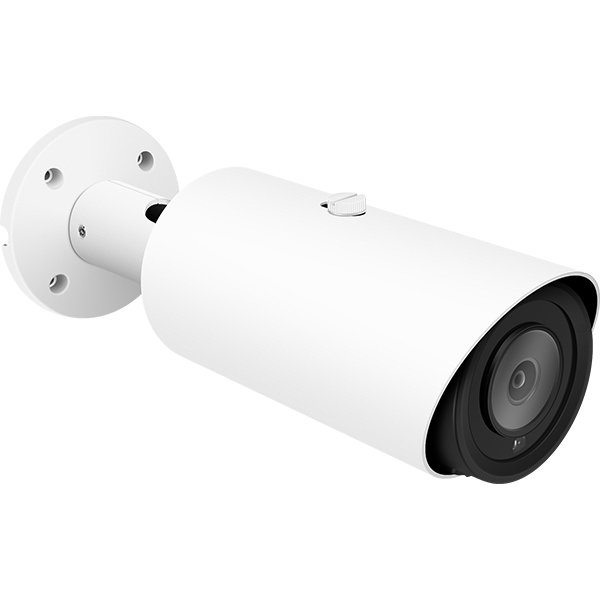

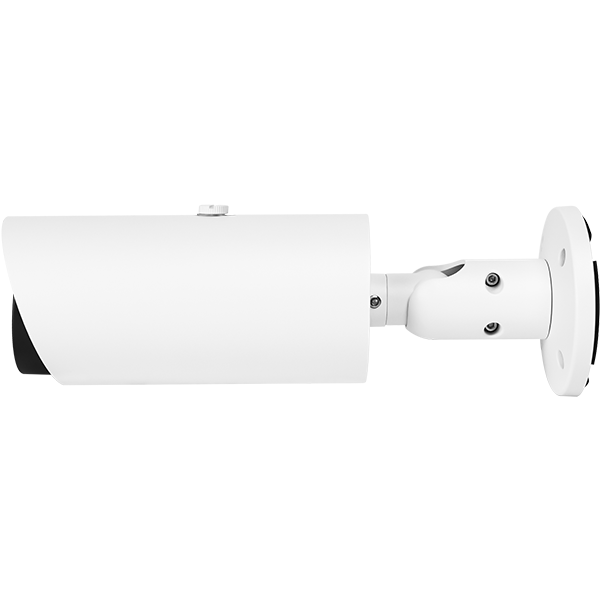

H.265 4K Motorized Smart Human&Vehicle detection Video link App viewing Outdoor PoE IP Camera

1/2.7" CMOS sensor

8MP HD resolution 3840×2160 4K output

Ultra low illumination 0.01Lux

Day/Night (ICR), AWB, 2D/3D-DNR, IR-CUT

D-WDR, Motion Detection, Privacy Mask, Flip

RTSP and Onvif 17.06 compatible

H.265/H.264 dual-stream media server

Easy-to-use P2P Cloud service

Multi web browser, PC Client, mobile APP remote access

RJ45 100mbps network port, IEEE802.3af PoE

Lightning protection 4000V

Strong water-proof housing, IP67

20 pcs SMD IR LEDs, IR distance 30-40 meters

HD 2.8-12mm Motorized lens

With Alarm input/output, Audio input/output, SD Card slot

Tech Specs
Details
Video
FAQ
Model YC-W798SGAHZ57FA
Camera
Image Sensor 1/2.7" 8MP CMOS
Effective Pixels 3840×2160
Electronic Shutter AUTO/Manual: 1/10s ~ 1/10000s, shutter threshold
Min. Illumination 0.01Lux@F1.2(AGC ON), 0Lux IR on
Day/Night Auto/Color/(B/W)/Timing
WDR Digital WDR
White Balance Auto/Manual
BLC/HLC Support
DNR 2D/3D DNR
Light Control Auto/Manual, Mode switch, Brightness level, OFF, Light ON Illumination
License Plate Mode Yes
Other Multi-lines OSD, Custom Title, Privacy Mask, Flip
Encode
Video Standard H.264/H.265/H.265+
Video Resolution Main Stream:
20fps@3840x2160,25fps@3072x2048,30fps@5MP/2560×1440/2304×1296/1920×1080/1280×720
Sub Stream:
30fps@D1/VGA(640×480)/640×360,480×360,CIF(352×288)
Video Bitrates 512Kbps - 12Mbps, VBR/CBR
Audio Standard G.711-u/G.711-a/AAC
Alarm 1ch Input/1ch Output
Audio 1ch Input/1ch Output
Memory slot YES,Maximum 512G
OSD Overlay Title and Time overlay, Snapshot
Smart Detection
Motion Detection Support
Target Detection Human and Vehicle Detection
Led
IR Led 20pcs SMD IR LEDs
IR Distance 30-40M
Lens
Focal length 2.8-12mm Motorized lens
Language
English, simplified Chinese, Chinese Traditional, Deutsch, Italian, Turkish, Polish, Korean, Japanese, Russian, Ukrainian, Persian.
Network Services
Protocol HTTP/RTSP/FTP/NFSv3/SMTP/DHCP/NTP/RTMP, etc.
P2P Yes
Web IE, Firefox, Chrome, Edge, Safari, etc.
Media CMS, Android, IOS
ONVIF 17.06 compatible
General
Network Port 1-RJ45, 100Mbps
Power Supply 12 VDC ± 10%
POE 802.3af/at 48V
Power Consumption < 8 W
Operating Temp. -30℃-(+60)℃, 10%-90%RH

4K Human Tracking and Vehicle Detection IR IP PTZ camera

Human Detection, Vehicle Detection Cross Line, Enter Area, Leave Area, Intrusion, People Flow Counting, Crowd Density Monitoring




  • 1. Can you provide OEM/ODM Service?
    Sure, YCX has over 14-year experience in the security industry, which has the capability of offering excellent ODM/OEM services to customize security products. If you have your own design and have problems for production, welcome here! YCX can offer you stable quality and the best performance security products.
  • 2. How about warranty?
    All YCX products with 24 months warranty since the purchase date. During the warranty period, you can contact our tech support team anytime.
  • 3. How long is the delivery time?
    Usually 15 days after order be confirmed; sample within 7 days. But it will take a little longer if with heavy burden of production task. The final lead time is based on negotiation.Most orders will be shipped via door to door shipping services like DHL, UPS, FEDEX, TNT. While some bulk orders will be shipped via air shipping or sea shipping based on customer's required.Meanwhile, the tracking number will be provided once the goods were sent out.
  • 4. What's the MOQ?
    No MOQ required for sample order, at least one carton per model after sample order.
  • 5. What's your main products?
    YCX mainly provide POE IP security camera system including 3MP/5MP/8MP POE IP Cameras, PTZ cameras , WIFI camera and NVR, also 4 IN 1 cameras and DVRs. YCX developed own professional NVR software GUI 100%, which is stable and unique in the market, it could manage multi-brands IP cameras. Also all YCX IP cameras contain Hik private and standard OVF protocol, which can compatible very well with Hik NVR.
  • 6. Are you a factory or trading company?
    YCX Electronics founded in 2009,which is 100% real factory with covering 5000 square meters plant. with over 14 years experience in manufacture and export security CCTV Camera and recorder products. By using the advance ERP management system, experienced R&amp;D team and strict quality control system,YCX can provide you with high quality security CCTV products.
How does Network
IP Camera Work?
IP Camera connect directly to the network,with H.265 compressed technology to save the space and bandwidth. It can be remotely viewing in realtime and back up with high quality high definition 4K,5MP,2MP image or video with audio via any PC,Recorder and mobile app to secure people and world safe.
Features of ColorVu IP camera
  • Support multi-channel real-time face image comparison face matching deployment control and calibration linkage.
  • Deep Ai H.265 Smart ip camera with NVR can plug and play and checked by remote CMS and mobile app.
  • AI CMS can unified manage Multiple intelligent NVRs and remotely realtime view the people face.
