家製品ネットワークIPカメラ WシリーズIPカメラ Easy 8MP IPC (SSC378DE+SC830AI)

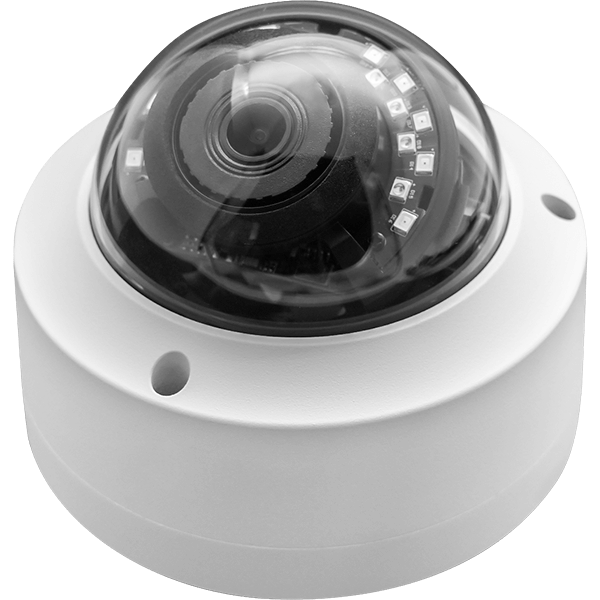

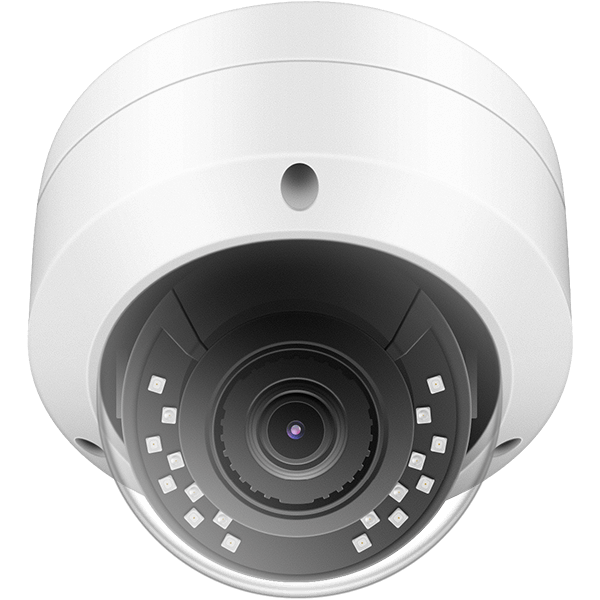

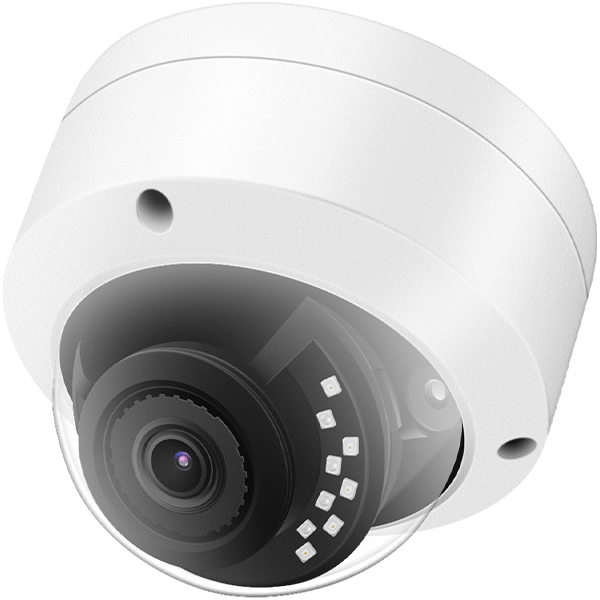

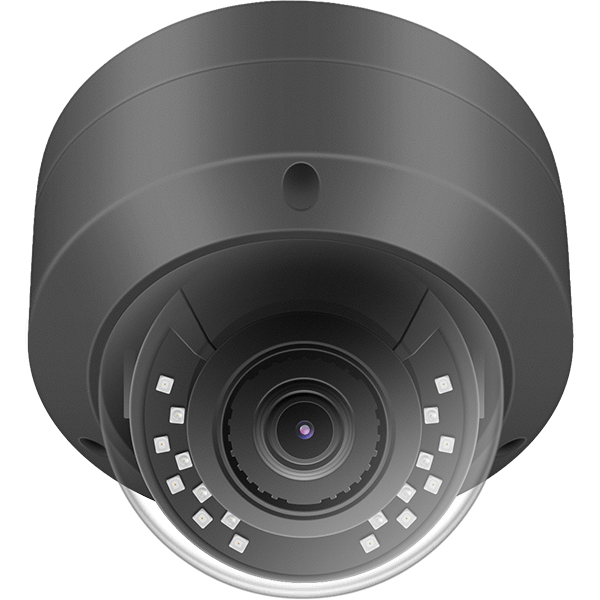

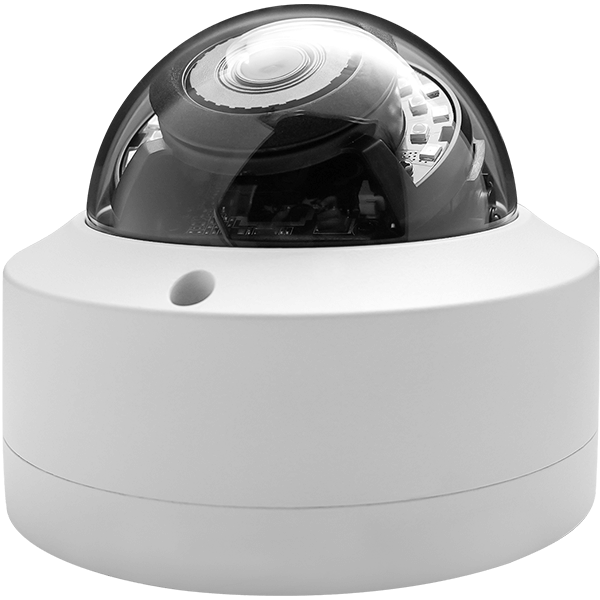

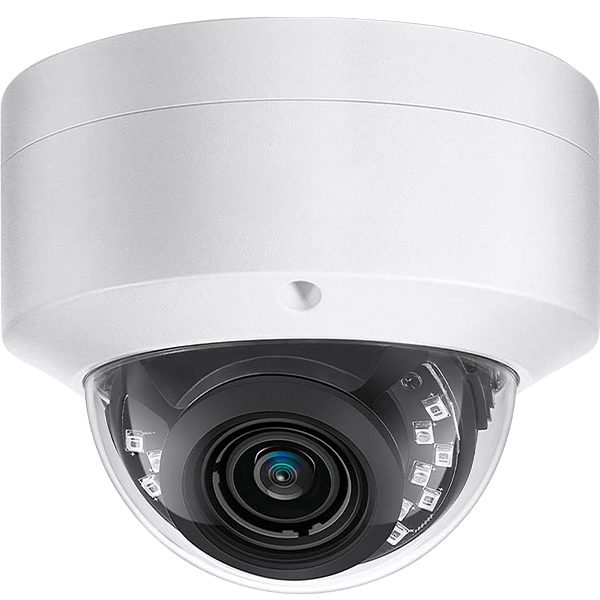

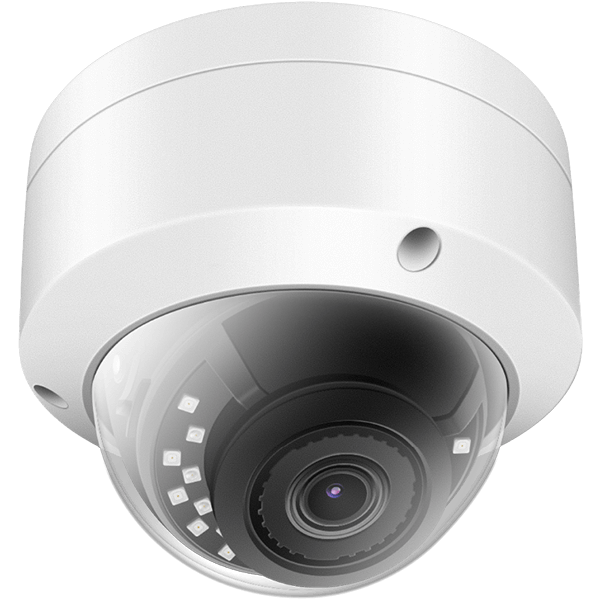

8MP IR Night vision Fixed Lens Vandal Proof Indoor Dome PoE IP Camera

1/2.7" CMOS sensor

8MP HD resolution 3840×2160 4K output

Ultra low illumination 0.01Lux

Day/Night (ICR), AWB, 2D/3D-DNR, IR-CUT

D-WDR, Motion Detection, Privacy Mask, Flip

RTSP and Onvif 17.06 compatible

H.265/H.264 dual-stream media server

Easy-to-use P2P Cloud service

Multi web browser, PC Client, mobile APP remote access

RJ45 100mbps network port, IEEE802.3af PoE

Lightning protection 4000V

Strong water-proof housing, IP67

18 pcs SMD IR Leds, IR distance 20-30 meters

HD 2.8/3.6 mm fixed lens optional

PDFをダウンロード

お問い合わせ

技術仕様

詳細

ビデオ

よくある質問

Model	W798AHBB54A
Camera
Image Sensor	1/2.7" 8MP CMOS
Effective Pixels	3840×2160
Electronic Shutter	AUTO/Manual: 1/10s ~ 1/10000s, shutter threshold
Min. Illumination	0.01Lux@F1.2(AGC ON), 0Lux IR on
Day/Night	Auto/Color/(B/W)/Timing
WDR	Digital WDR
White Balance	Auto/Manual
BLC/HLC	Support
DNR	2D/3D DNR
Light Control	Auto/Manual, Mode switch, Brightness level, OFF, Light ON Illumination
License Plate Mode	Yes
Other	Multi-lines OSD, Custom Title, Privacy Mask, Flip, Reset button
Encode
Video Standard	H.264/H.265/H.265+
Video Resolution	Main Stream:
	20fps@3840x2160,25fps@3072x2048,30fps@5MP/2560×1440/2304×1296/1920×1080/1280×720
	Sub Stream:
	30fps@D1/VGA(640×480)/640×360,480×360,CIF(352×288)
Video Bitrates	512Kbps - 12Mbps, VBR/CBR
Audio Standard	G.711-u/G.711-a/AAC
Built-in Mic	Optional
OSD Overlay	Title and Time overlay, Snapshot
Smart Detection
Motion Detection	Support
Target Detection	Human and Vehicle Detection
Led
IR Led	18 pcs SMD IR Leds
IR Distance	20-30 M
Lens
Focal length	2.8/3.6 mm fixed lens
Focal length	2.8/3.6 mm fixed lens
Language
English, simplified Chinese, Chinese Traditional, Deutsch, Italian, Turkish, Polish, Korean, Japanese, Russian, Ukrainian, Persian.
Network Services
Protocol	HTTP/RTSP/FTP/NFSv3/SMTP/DHCP/NTP/RTMP, etc.
P2P	Yes
Web	IE, Firefox, Chrome, Edge, Safari, etc.
Media	CMS, Android, IOS
ONVIF	17.06 compatible
General
Network Port	1-RJ45, 100Mbps
Power Supply	12 VDC ± 10%
POE	802.3af/at 48V
Power Consumption	< 8 W
Operating Temp.	-30℃-(+60)℃, 10%-90%RH

4K Human Tracking and Vehicle Detection IR IP PTZ camera

Human Detection, Vehicle Detection Cross Line, Enter Area, Leave Area, Intrusion, People Flow Counting, Crowd Density Monitoring

1. Can you provide OEM/ODM Service?

Sure, YCX has over 14-year experience in the security industry, which has the capability of offering excellent ODM/OEM services to customize security products. If you have your own design and have problems for production, welcome here! YCX can offer you stable quality and the best performance security products.
2. How about warranty?

All YCX products with 24 months warranty since the purchase date. During the warranty period, you can contact our tech support team anytime.
3. How long is the delivery time?

Usually 15 days after order be confirmed; sample within 7 days. But it will take a little longer if with heavy burden of production task. The final lead time is based on negotiation.Most orders will be shipped via door to door shipping services like DHL, UPS, FEDEX, TNT. While some bulk orders will be shipped via air shipping or sea shipping based on customer's required.Meanwhile, the tracking number will be provided once the goods were sent out.
4. What's the MOQ?

No MOQ required for sample order, at least one carton per model after sample order.
5. What's your main products?

YCX mainly provide POE IP security camera system including 3MP/5MP/8MP POE IP Cameras, PTZ cameras , WIFI camera and NVR, also 4 IN 1 cameras and DVRs. YCX developed own professional NVR software GUI 100%, which is stable and unique in the market, it could manage multi-brands IP cameras. Also all YCX IP cameras contain Hik private and standard OVF protocol, which can compatible very well with Hik NVR.
6. Are you a factory or trading company?

YCX Electronics founded in 2009,which is 100% real factory with covering 5000 square meters plant. with over 14 years experience in manufacture and export security CCTV Camera and recorder products. By using the advance ERP management system, experienced R&D team and strict quality control system,YCX can provide you with high quality security CCTV products.

How dose Network
IP Camera Work?

IP Camera connect directly to the network,with H.265 compressed technology to save the space and bandwidth. It can be remotely viewing in realtime and back up with high quality high definition 4K,5MP,2MP image or video with audio via any PC,Recorder and mobile app to secure people and world safe.

Features of ColorVu IP camera

Support multi-channel real-time face image comparison face matching deployment control and calibration linkage.
Deep Ai H.265 Smart ip camera with NVR can plug and play and checked by remote CMS and mobile app.
AI CMS can unified manage Multiple intelligent NVRs and remotely realtime view the people face.
