家製品ネットワークIPカメラ IシリーズIPカメラ Pro VCA 5MP IPC (SSC30KQ+SC500AI)

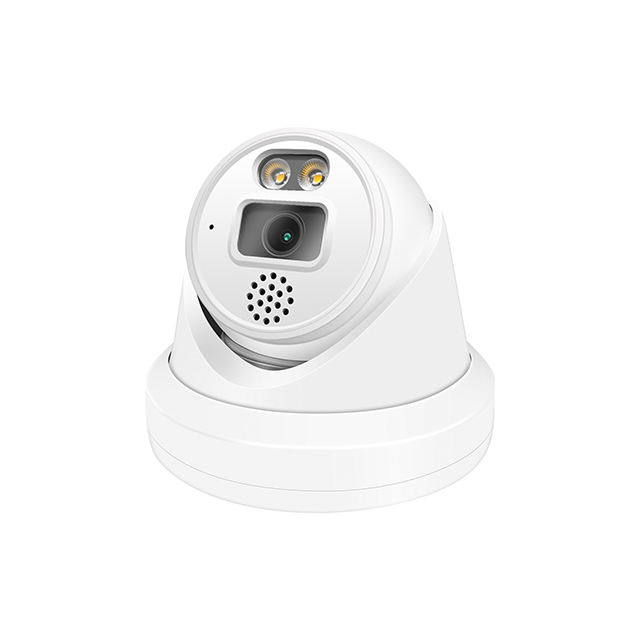

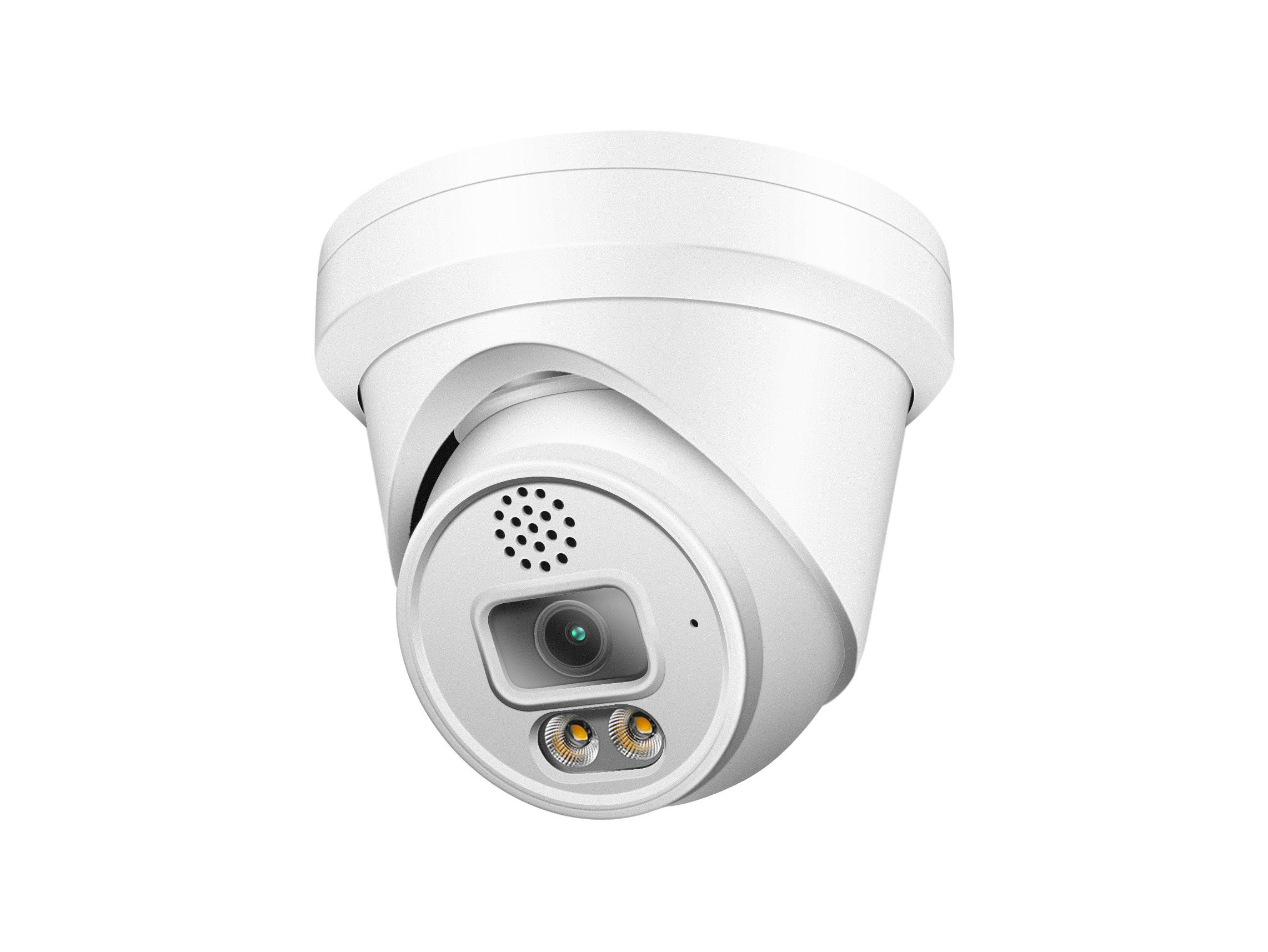

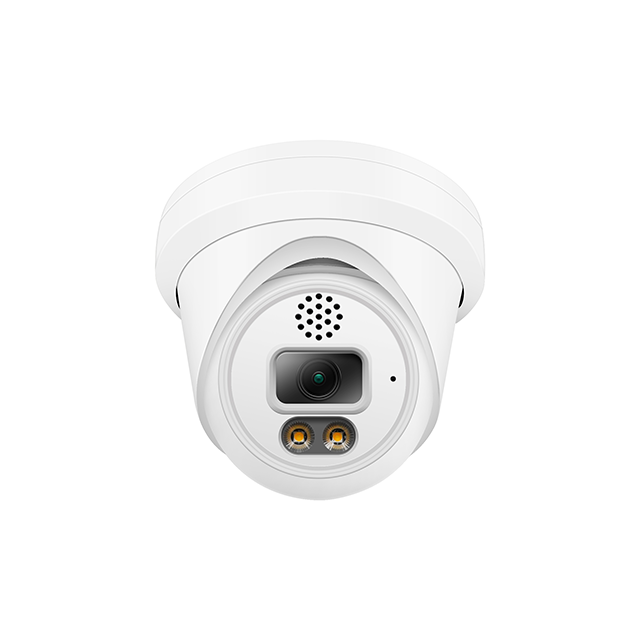

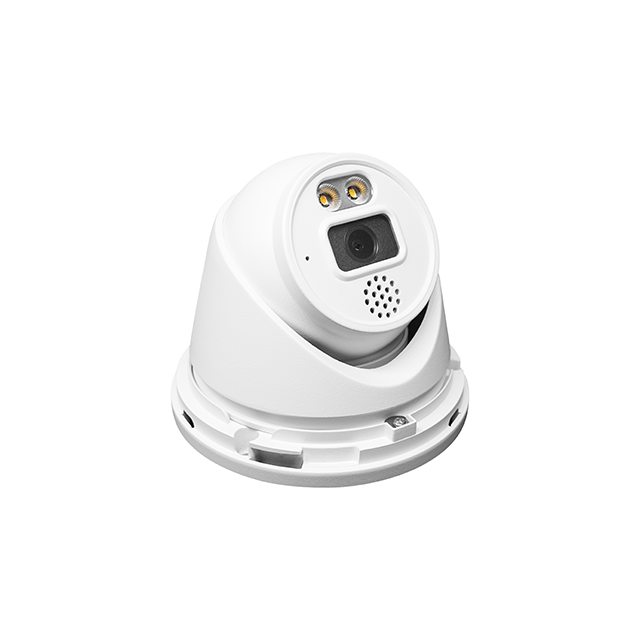

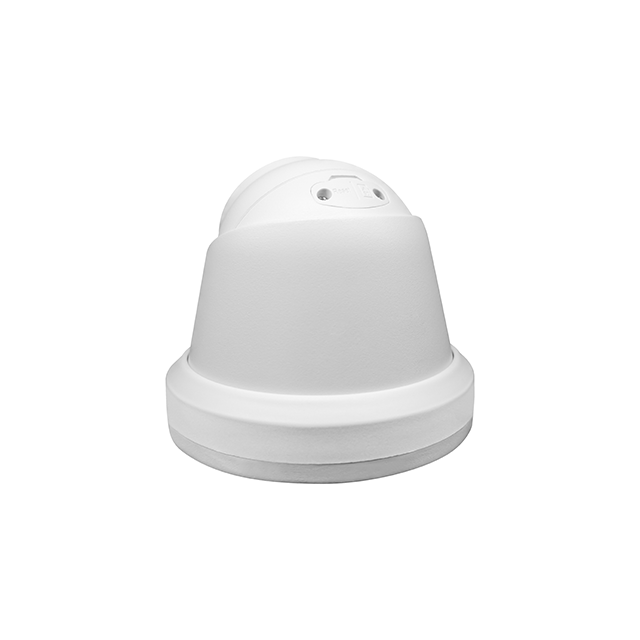

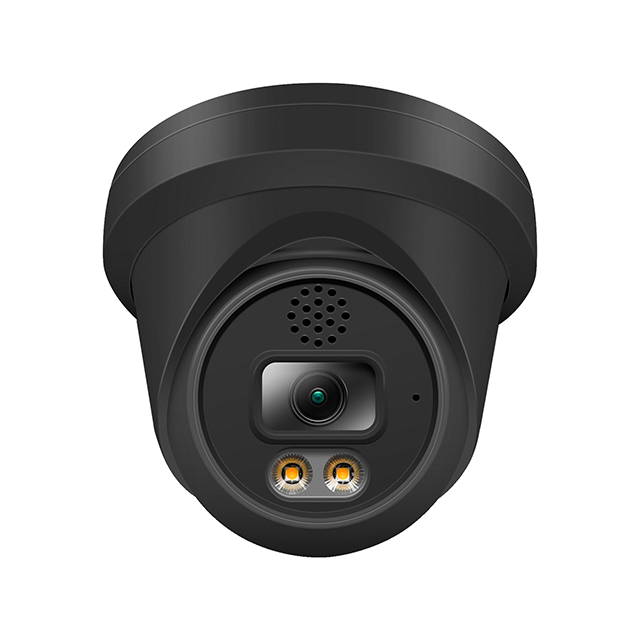

5MP dual light source VCA Smart AI turret IP Camera with two way audio

1/2.7" 5MP CMOS sensor

5MP HD resolution 2880*1620@25fps Smart encoding

Ultra low illumination 0.01Lux

2-Exposure Line WDR upto 100dB

Scenes switching, Day/Night (ICR), AWB, 2D/3D-DNR, Rotation 90°

Slow Shutter, light control, White Balance, Defog

OSD , Privacy Mask, ROI, Watermark

Smart Intelligent Cross Line, Enter Area, Leave Area, Intrusion, People Flow Counting, Crowd Density Monitoring

RTSP and Onvif 17.06 compatible

Common event Motion Detection, Tampering Alarm, Audio Detection

H.265/H.264 three-stream media server

Easy-to-use P2P Cloud service

Multi web browser, PC Client, mobile APP remote access

RJ45 100mbps network port, IEEE802.3af PoE

Lightning protection 4000V

Strong water-proof housing, IP67

Two way audio, Built in Microphone and Speaker,

2PCS dual Lights,IR distance:25-30M,Warm light distance:25-30M

HD 2.8mm F1.6 lens

PDFをダウンロード

お問い合わせ

技術仕様

詳細

ビデオ

よくある質問

Model	I755ADB97KA
Camera
Image Sensor	1/2.7" 5MP CMOS
Effective Pixels	2888H x 1628V
Electronic Shutter	AUTO, 1/25s ~ 1/100000s
Min. Illumination	0.01Lux@F1.2(AGC ON), 0Lux IR on
Day/Night	Auto/Color/(B/W)/Timing
WDR	2-Exposure Line WDR upto 100dB
White Balance	Auto/Manual
AGC/BLC/HLC	Support
DNR	2D/3D DNR
Other	Multi-lines OSD, Privacy Mask, ROI, Watermark, Low Shutter, Scenes
Encode
Video Standard	H.264/H.265
Video Resolution	Main Stream:
	25fps@5MP(2880x1620)/4MP(2560x1440), 30fps@3MP(2304x1296)/1080P
	Sub stream: 30fps@720P/D1/640x360/CIF
	Third stream: D1, 640x360,CIF
Video Bitrates	128kbps – 6144kbps, VBR/CBR
Audio Standard	G.711-u/G.711-a
Built-in Mic	Yes
Intelligent Detection	Human Detection, Vehicle Detection
Intelligent Detection	Cross Line, Enter Area, Leave Area, Intrusion, People Flow Counting, Crowd Density Monitoring
Leds and distance
Leds	2PCS dual Light LEDs
Warm light distance	25-30 M
IR Distance	25-30 M
Lens
Focal length	HD 2.8mm F1.6 lens
Functions
Two way audio, Built in Microphone and Speaker
Network Services
Protocol	HTTP(s)/IPv6/TCP/UDP/RTP/RTSP/FTP/SMTP/DDNS/DHCP/PPPoE/NTP, etc.
P2P	Yes
Web	IE, Firefox, Chrome, Edge, Safari, etc.
Media	CMS, Android, IOS
ONVIF	17.06 compatible
General
Network Port	POE ,1-RJ45, 100Mbps
Power Supply	12 VDC ± 10%
Power Consumption	< 5 W
Operating Temp.	-30℃-(+60)℃, 10%-90%RH

5MP H.265 Mini 5X Zoom POE PTZ IP Camera

Colorful Video at night when human motion detection

1. Can you provide OEM/ODM Service?

Sure, YCX has over 14-year experience in the security industry, which has the capability of offering excellent ODM/OEM services to customize security products. If you have your own design and have problems for production, welcome here! YCX can offer you stable quality and the best performance security products.
2. How about warranty?

All YCX products with 24 months warranty since the purchase date. During the warranty period, you can contact our tech support team anytime.
3. How long is the delivery time?

Usually 15 days after order be confirmed; sample within 7 days. But it will take a little longer if with heavy burden of production task. The final lead time is based on negotiation.Most orders will be shipped via door to door shipping services like DHL, UPS, FEDEX, TNT. While some bulk orders will be shipped via air shipping or sea shipping based on customer's required.Meanwhile, the tracking number will be provided once the goods were sent out.
4. What's the MOQ?

No MOQ required for sample order, at least one carton per model after sample order.
5. What's your main products?

YCX mainly provide POE IP security camera system including 3MP/5MP/8MP POE IP Cameras, PTZ cameras , WIFI camera and NVR, also 4 IN 1 cameras and DVRs. YCX developed own professional NVR software GUI 100%, which is stable and unique in the market, it could manage multi-brands IP cameras. Also all YCX IP cameras contain Hik private and standard OVF protocol, which can compatible very well with Hik NVR.
6. Are you a factory or trading company?

YCX Electronics founded in 2009,which is 100% real factory with covering 5000 square meters plant. with over 14 years experience in manufacture and export security CCTV Camera and recorder products. By using the advance ERP management system, experienced R&D team and strict quality control system,YCX can provide you with high quality security CCTV products.

How dose Network
IP Camera Work?

IP Camera connect directly to the network,with H.265 compressed technology to save the space and bandwidth. It can be remotely viewing in realtime and back up with high quality high definition 4K,5MP,2MP image or video with audio via any PC,Recorder and mobile app to secure people and world safe.

Features of ColorVu IP camera

Support multi-channel real-time face image comparison face matching deployment control and calibration linkage.
Deep Ai H.265 Smart ip camera with NVR can plug and play and checked by remote CMS and mobile app.
AI CMS can unified manage Multiple intelligent NVRs and remotely realtime view the people face.
