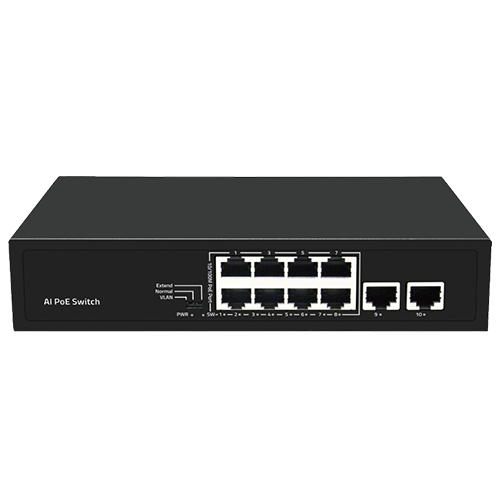

8*10/100M POE ports + 2* 1000M Ethernet Uplink ports；
Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3ab standards；
Ethernet port supports 10/100M adaptive and POE functions；
Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard；
Support port auto flip (Auto MDI/MDIX)；
Automatically supplied to adaptive devices；
Panel indicator monitoring status and help failure analysis；
Support for VLAN mode, Normal mode and Extend mode；
Support Watchdog Function；
Lightning Protection Surge: General Mode 6KV, Differential Mode 4KV, ESD 8KV.
【Application Environment】
Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration,etc.
Broadband private network: Suitable for financial, government, oil, railway,electric power, public security, transportation, education and other industries
Multimedia transmission: Integrated transmission of images, voice and data,suitable for remote teaching, conference TV, videophone and other applications
Real-time monitoring: Simultaneous transmission of real-time control signals,images and data
| I/O Interface | |
| Power | Input: AC 100-240V, 50/60Hz |
| Ethernet | 8 Port 10/100M PoE + 2 Port 1000M Ethernet Uplink |
| Performance | |
| Switching Capacity | 5.6Gbps |
| Throughput | 4.166Mpps |
| Packet Buffer | 448K |
| MAC Address | 2K |
| Jumbo Frame | 9216bytes |
| Transfer Mode | Store and forward |
| MTBF | 100000 hour |
| Standard | |
| Network protocol | IEEE802.3 (10Base-T) |
| IEEE802.3u (100Base-TX) | |
| IEEE802.3ab (1000Base-TX) | |
| IEEE802.3x (Flow control) | |
| PoE Protocol | IEEE802.3af （15.4W） |
| IEEE802.3at （30W） | |
| Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A |
| EMS: EN61000-4-2 (ESD)、 | |
| EN61000-4-4 (EFT)、 | |
| EN61000-4-5 (Surge) | |
| Network Medium | 10Base-T : Cat3、4、5 or above UTP(≤100m) |
| 100Base-TX : Cat5 or above UTP(≤100m) | |
| 1000Base-TX : Cat5 or above UTP(≤100m) | |
| Protection | |
| Security Certificate | CE、FCC、RoHS |
| Environment | |
| Working Environment | Working Temperature：-20~50°C |
| Storage Temperature：-40~85°C | |
| Working Humidity ：10%~90%，non-condensing | |
| Storage Temperature：5%~90%，non-condensing | |
| Working Height：Maximum10,000 feet | |
| Storage heigh：Maximum 10,000 feet | |
| Indication | |
| LED Indicators | PWR（power supply），SW（DIP），1-10 Green（Link&Data） |
| DIP Switch | VLAN：Port isolation mode. In this mode, the PoE ports (1-8) of the switch cannot communicate with each other, and can only communicate with the UP-link port. The port AI mode is turned on. |
| Normal: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M / 100M adaptive; The port AI mode is closed. | |
| Extend：Link extension mode, 1-8 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M, and the port AI mode is turned on | |
| Mechanical | |
| Structure Size | Product Dimension : 200*118*44mm |
| Package Dimension : 245*190*60mm | |
| N.W：0.62kg | |
| G.W：0.93kg | |
| Packing Info | Carton MEAS：505*320*400mm |
| Packing Qty：20 units | |
| Packing Weight：19.6KG | |
| Power Voltage | Input Voltage ：AC 100-240 V |
| Power supply：52V2.3A | |
| Package List | Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certificate 1 pc |
